Horizontal Remove

Quick Reference to Scripting Command
a=HREMOVE(MODE, R/H, G/S, B/V, 1/A)
Items in CAPS are 0/1 switches or switches with more options than 0/1.

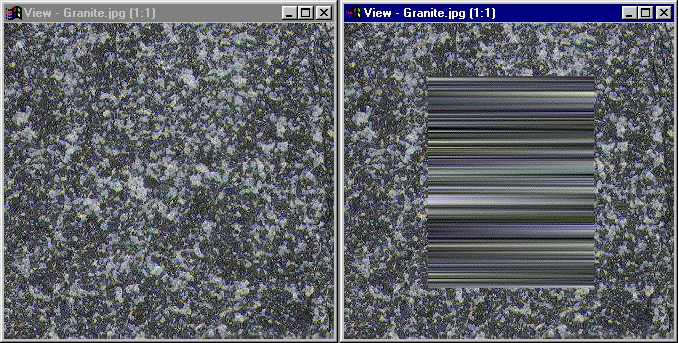

Operation Example

This has had both HRemove and VRemove used on it

Horizontal Remove interpolates the color of the image on a line-by-line basis between the edges of the area selection. It will interpolate between the left side of the selection and the right side. Certain facets of the image can be included or excluded from the remove (more below).

Warning:

Careful!!!
It's important to note that the only the sides of the area selection are taken into consideration when the effect takes place. No other part of the selection will be interpolated, and will be replaced by the remove completely.


Horiz. Remove Operation Dialog

RGBA Remove

Red, Green, Blue, and Alpha channels of an image can be removed independently. For a complete remove, all 4 have to be checked.

Red

Remove in Red channel

Green

Remove in Green channel

Blue

Remove in Blue channel

Alpha

Remove in Alpha channel

HSV Remove

Selections can also be removed according to Hue, Saturation, and Color Value; each are independent.

Hue

Remove by Hue

Saturation

Remove by Saturation

Value

Remove by Value
