a=BUILDPAL(CLEAR, ACCUMULATE, GENERATE, RENDER TRANSPARENT COLOR) |
Items in CAPS are 0/1 switches or switches with more options than 0/1. |
The Build palette operation is used to develop an animation palette from a number of images. This allows animators to "render down" a sequence of images into a palette which can be used for all of the frames in the animation. The operation has three states or actions: Clear, Accumulate, and Generate Palette.
These options relate to how WinImages F/x and the Timeline will treat the action images in regard to the image's palette.
|
This is done for all frames that should be included in the final palette selection. The next icon in the Timeline should use the accumulate mode only. This will cause WinImages F/x to accumulate color information from each of the specified animation files, and then store that information in the color collection buffer. You have the option of skipping frames by decreasing the operation arrow associated with the operation icon.

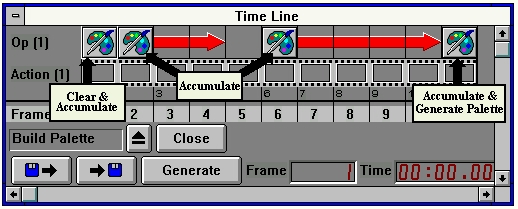

For example, the Timeline below does not use the 5th image in the accumulation of colors. The accumulation resumes with frame 6. The last operation is an Accumulate and Generate Palette option. This will gather the color information from the final image, and then select the overall best palette from all of the accumulated colors. The number of colors that this operation selects directly relates to the Number of Colors setting in the Output Color Reduction dialog. This value can range from 1 to 256.
The colors are then placed into the render palette, on the basis of the color usage settings for each color cell (see output color reduction). In general you will not want to use the Save Results option while gathering a render palette. Instead, you should sequence the frames (as shown), and then re-render and save the frames with the newly selected render palette.
Clear
The Clear option will clear all of the currently stored colors in the color collection buffer. This is generally reserved for the first frame in a Timeline, but can be used for any frame. Once the collection buffer has been cleared, it cannot be retrieved. Please review the previous sections for proper usage of the Clear option in a Timeline.
Accumulate
The accumulate mode will go through all of the specified images, and collect color information from these images. This information is placed into a color collection buffer where all of the colors from all of the images are temporarily stored. After all of the images have been processed, the Generate Palette option will pick the best representative colors from the collection buffer. The accumulate option is used for almost every frame in a Timeline, but can be turned off for any relevant frame or frames. Review the sections above for proper usage of the accumulate option in the Timeline.
Generate Palette
This option will create a palette of colors based on the colors in the color collection buffer, and the setting of the Number of Colors option in the Output Color Reduction panel. For example, if you set the Number of Colors option to 64, Generate Palette would select the best 64 colors from the color collection buffer. After these colors have been selected, they would be placed into the render palette based on the current usage status of the first 64 colors (see the output color reduction section for more on color usage). As stated above, this option is generally reserved for the last frame of a Timeline, but it can also be used to obtain a palette from a single image.
Load Palette
The Load Palette button will load any previously saved palette as the current render palette. It is important to remember that render and effects palettes are kept separate in the program. For example, loading a palette via this option will effect only the render palette, not the effects palette. WinImages F/x loads a wide variety of palette formats including: Microsoft Windows Paintbrush palettes, AVI (Video for Windows) palettes, Bitmap palettes, Adobe Color Table (ACT) palettes, and IFF palettes.
Save Palette
The Save Palette option allows you to save the current render palette in the standard WinImages palette format. Once a render palette has been saved, it can be reloaded using the load palette option in either a render or effects palette.
Reduction Settings
This button will access the Output Color Reduction dialog. This dialog contains a new area that allows the user to select which colors should be selected. This dialog can be left open and edited while you are setting up a Build Palette operation, and it will automatically reflect any changes that you make to the render palette.
Edit
This button will access the palette generated by the operation. This allows you to examine and edit its contents before saving the palette.
Render Transparent Color
This option allows you to create gif images with transparency. This reserves a transparent entry in the palette, now gif images saved with that palette will be transparent where the image alpha was 0.
