Pixelize

Quick Reference to Scripting Command
a=PIXELIZE(red, green, blue, width, height, edge)
Items in CAPS are 0/1 switches or switches with more options than 0/1.

Operation Example

The Pixelize operation will create rectangular regions that are the average brightness of the underlying pixels in that region. The overall effect is similar to zooming an image to the point where only pixels are visible. You can control the width and height of the pixels as well as the edge color of the pixels. Due to its rectangular nature, this operation is best suited for use with the Rectangle or Entire Image area selection modes.

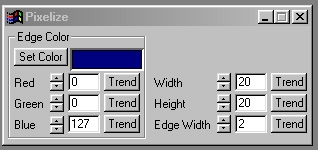

Pixelize Operation Dialog

Pixelize Controls

Trends

You will notice that all of the controls have a Trend button next to them. The trend button allows you to set that variable over a set of frames. Each frame of the animation can be thought of as a slice of time. The trends allow you to alter some, all, or none of the variables for a particular time slice. You will notice that the trend graphs have equidistantly spaced vertical lines. Each of these lines represents a frame in the animation. The number of frames can be altered using the Sequence controls... in the Timeline pull down menu. Animation lengths of 100 - 999 frames will be represented with a vertical bar being 10 frames, and animation length greater than 1000 frames will have a vertical bar for every 100 frames. Click here to view more information on Trends.

Edge Color Preview Window

This preview window will display the color of the edge color that is to appear on the edges of the pixels. This color will change as the Red, Green, and Blue values are altered. As the RGB controls are altered the Background color preview will be updated to reflect the changes. Pressing "Set Color" will bring up WinImages F/x Color Selection Dialog. If you would like to learn more about the set color dialog, Click Here.

Red

This slide gadget allows you to specify the Red component of the RGB value for the Edge color. This value can be altered by adjusting the sliders or by entering the values. The values for any of the RGB components range from 0 to 255.

Green

This slide gadget allows you to specify the Green component of the RGB value for the Edge color. This value can be altered by adjusting the sliders or by entering the values. The values for any of the RGB components range from 0 to 255.

Blue

This slide gadget allows you to specify the Blue component of the RGB value for the Edge color. This value can be altered by adjusting the sliders or by entering the values. The values for any of the RGB components range from 0 to 255.

Width

The Width control allows you to specify the width component of the pixels to be created. The width is measured in pixels and can range from 1 to 100 pixels in size. The width can be set using the slide gadget or by entering a value in the text entry field.

Height

The Height control allows you to specify the height component of the pixels to be created. The height is measured in pixels and can range from 1 to 100 pixels in size. The height can be set using the slide gadget or by entering a value in the text entry field.

Edge Width

This control allows you to specify the width of the pixel's border. The width can range from 0 to 20 pixels, and is set using the slide gadget or text entry field.

WinImages F/x Manual Version 7, Revision 5, Level B
